Grease Boss EasyClean™
The Mactrap Grease Boss EasyClean is designed with low cost, low maintenance, restricted kitchen space, and high performance in mind.
The Grease Boss EasyClean is an electromechanical Grease Removal Unit, removing fat, oil and grease (FOG) from greasy water. It incorporates a self-wash and pump out cycle to keep the appliance cleaner and help reduce annual servicing costs.
Greasy water enters through a removable filter basket which captures solids. FOG is extracted from the greasy water periodically throughout the day. Hot water jets push the FOG towards the roller and the FOG is extracted into a disposable container (such as a plastic milk bottle) for removal with rubbish collection. After the FOG is extracted from the greasy water, the tank is partially drained to help remove residual solids. The hot water jets then clean the sides of the tank. Another hot water jet washes the roller, the blade and the FOG chute. The result is a cleaner appliance, operating continuously with very low maintenance.
- The Grease Boss EasyClean range has been independently tested and complies with NZBC G13 and is accepted for installation by all Local Government Authorities.
- The pump out function reduces sediment build up
- Self-cleaning reduces annual servicing costs
- Compact design fits in restricted kitchen space
 |
 |
 |
|
Grease Boss G5
|
Grease Boss G15
|
Grease Boss G25
|
Features
¹ The hot water jets help reduce grease build-up, while the pump-out function minimises food sediment accumulation. Together, these features support improved internal cleanliness; however, they do not replace the need for regular servicing.
Models
Rated to 0.5 litres/second inflow, the G5 is specifically designed for the temperatures associated with a Combi Oven. The G5 is the only product available in New Zealand specially designed for Combi ovens where the drainage point can be as low as 200mm off the ground.

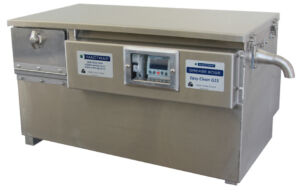

Rated to 1.6 litres/second inflow, the G15 is ideal for smaller kitchens, typically with a single wash sink.

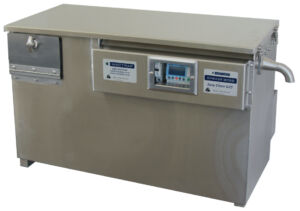

Rated to 2.5 litres/second inflow, the G25 is designed for larger kitchens typically with two large wash sinks.
Rated to 3.4 litres/second inflow, the G35 is designed for larger kitchens typically with two large wash sinks.

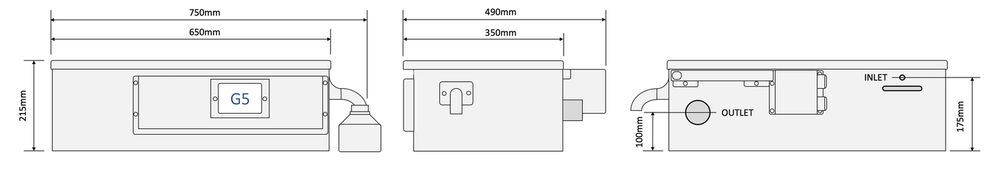

Dimensions
Specifications
G5 |
|
|---|---|
| Material | 304 Stainless Steel |
| Max Inflow Rate | <0.5 litres/second |
| Static Capacity | 40 litres |
| FOG Removal Rate | <4.56 Kg/hour |
| Electrical Supply | 240V 10 Amp |
| Hot Water Supply | Mains pressure 45-65 °C |
G15 |
|
|---|---|
| Material | 304 Stainless Steel |
| Max Inflow Rate | <1.5 litres/second |
| Static Capacity | 100 litres |
| FOG Removal Rate | <11.6 Kg/hour |
| Electrical Supply | 240V 10 Amp |
| Hot Water Supply | Mains pressure 45-65 °C |
G25 |
|
|---|---|
| Material | 304 Stainless Steel |
| Max Inflow Rate | <2.5 litres/second |
| Static Capacity | 120 litres |
| FOG Removal Rate | <12.5 Kg/hour |
| Electrical Supply | 240V 10 Amp |
| Hot Water Supply | Mains pressure 45-65 °C |
G35 |
|
|---|---|
| Material | 304 Stainless Steel |
| Max Inflow Rate | <3.5 litres/second |
| Static Capacity | 140 litres |
| FOG Removal Rate | <13.4 Kg/hour |
| Electrical Supply | 240V 10 Amp |
| Hot Water Supply | Mains pressure 45-65 °C |
Further Information
 |

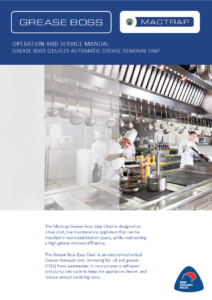

| G15 and G25 Operating Manual |
 |
| G5 Combi Operating Manual |
 |
| G15, G25, G35 Datasheet |
 |
| Building Product Information Sheet |
 |

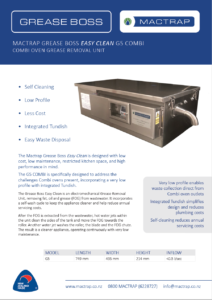

| G5 Combi Brochure |
 |
| G15 & G25 Installation Guide |
